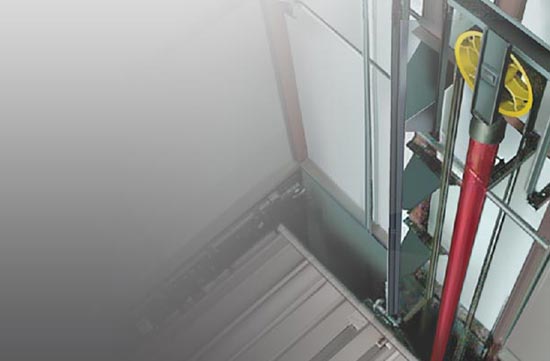

Hydraulic elevators are powered by a piston that travels inside a cylinder. An electric motor is used to pump hydraulic oil into the cylinder to move the piston, thus smoothly lifting the elevator cab. Electrical valves control the release of the oil for a gentle descent.

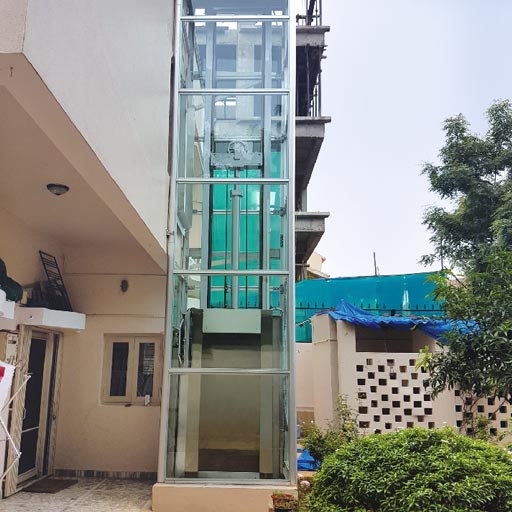

Hydraulic elevators are used extensively in villa or buildings up to ve stories high. These elevators do not use the large overhead hoisting machinery the way geared and gearless traction systems do.

The power pack is placed on the lowest landing on any side of the elevator hoistway. The minimum overhead dimensions required are 3000mm and the pit required is 300mm.

Green Solutions For a

Better Tomorrow

Special functions
for the handicapped
fulfill equal carrying
in a harmonious space

Guidelines

  • The lift need to be operated by authorized personnel's only
  • The “dead stick” type control should return to 'neutral' or 'off' position when released.
  • The hydraulic pressure should never exceed the recommended level.

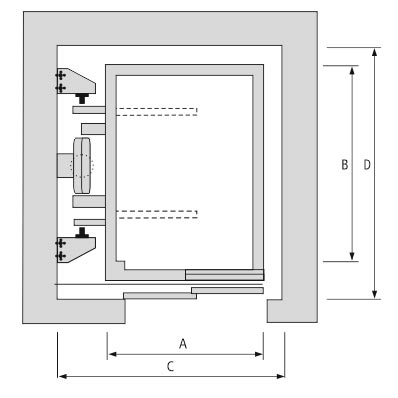

ELEVATION PLANS

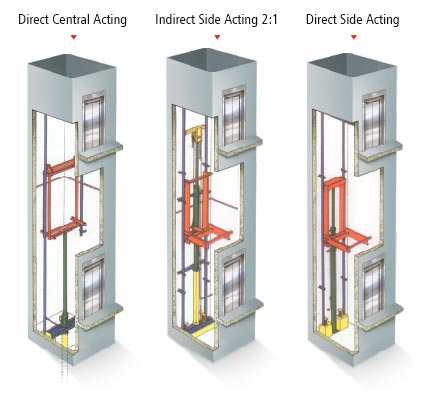

HOLE TYPE ACTING

ROPE TYPE - Single Cylinder

HOLE TYPE ACTING

It is a directly acting suspension with a simple or split piston.

It is the simplest solution of suspension for any load.

ROPE TYPE - Single Cylinder

It is a single side indirectly acting suspension with wire ropes having one piston for regular loads.

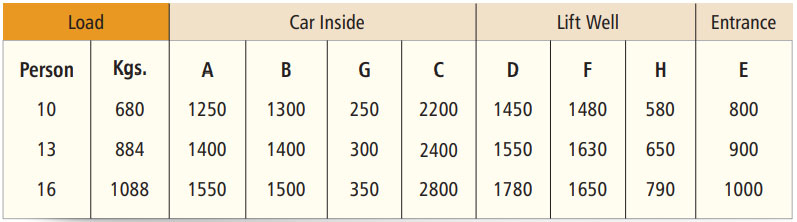

Size can be customised as per requirements all dimensions are in mm
